Cap macara motorizat Sevenoak SK-ECH04

Sevenoak Cap macara motorizat SK-ECH04

1.799,00 RON 1.899,00 RON -100,00 RON
cu TVA
Cod produs:
3500701
Adauga in lista de preferinte
Brand:
Descriere

Cap macara motorizat Sevenoak SK-ECH04

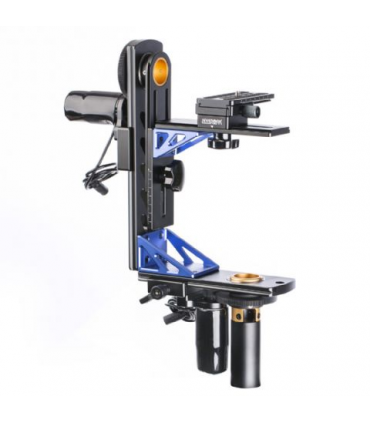

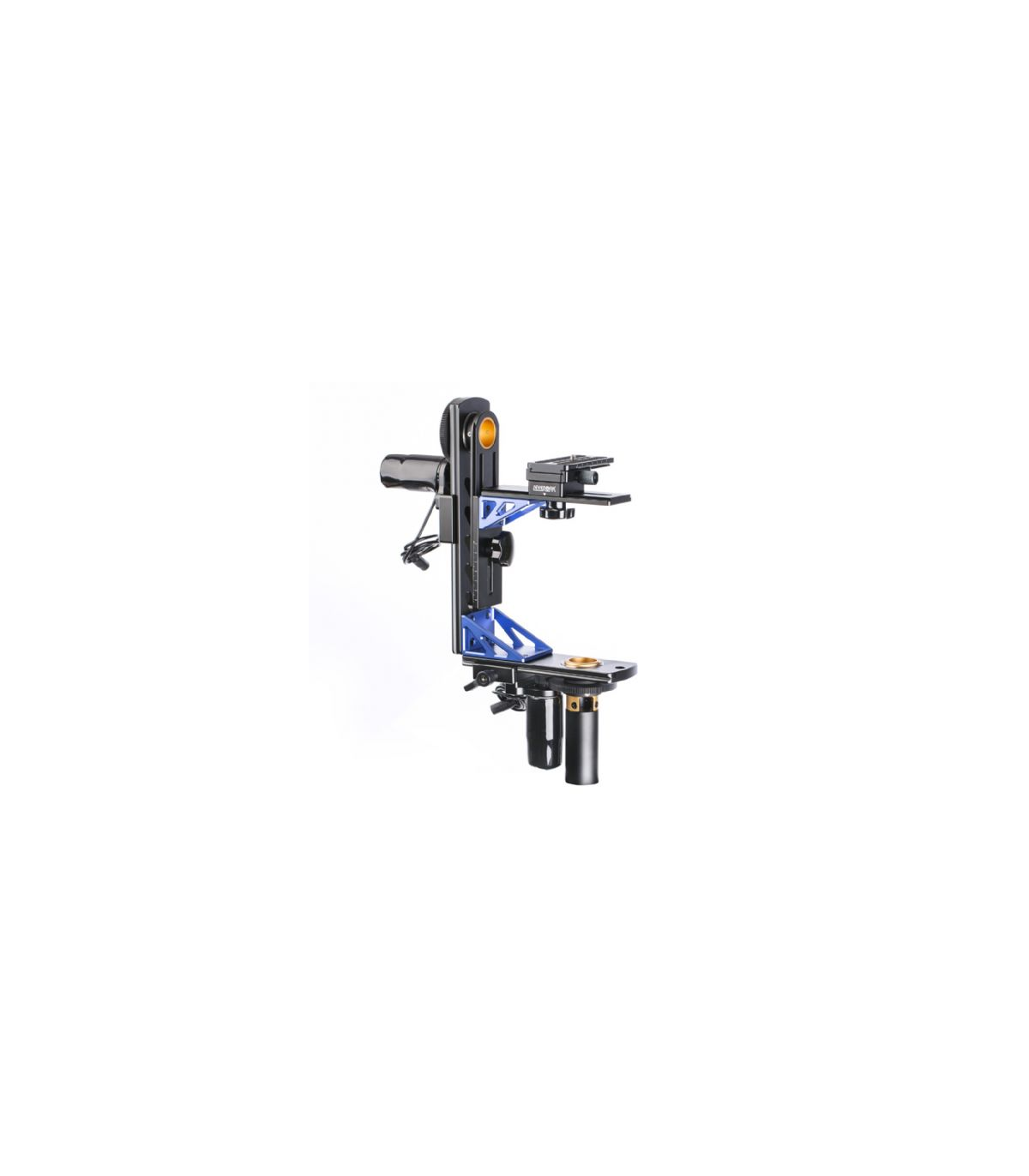

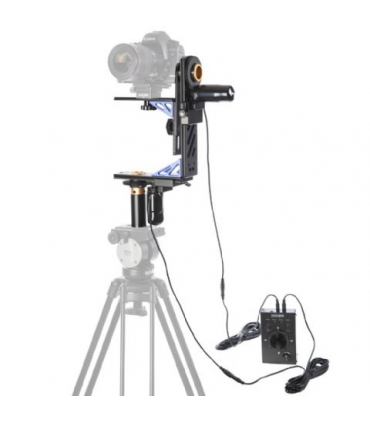

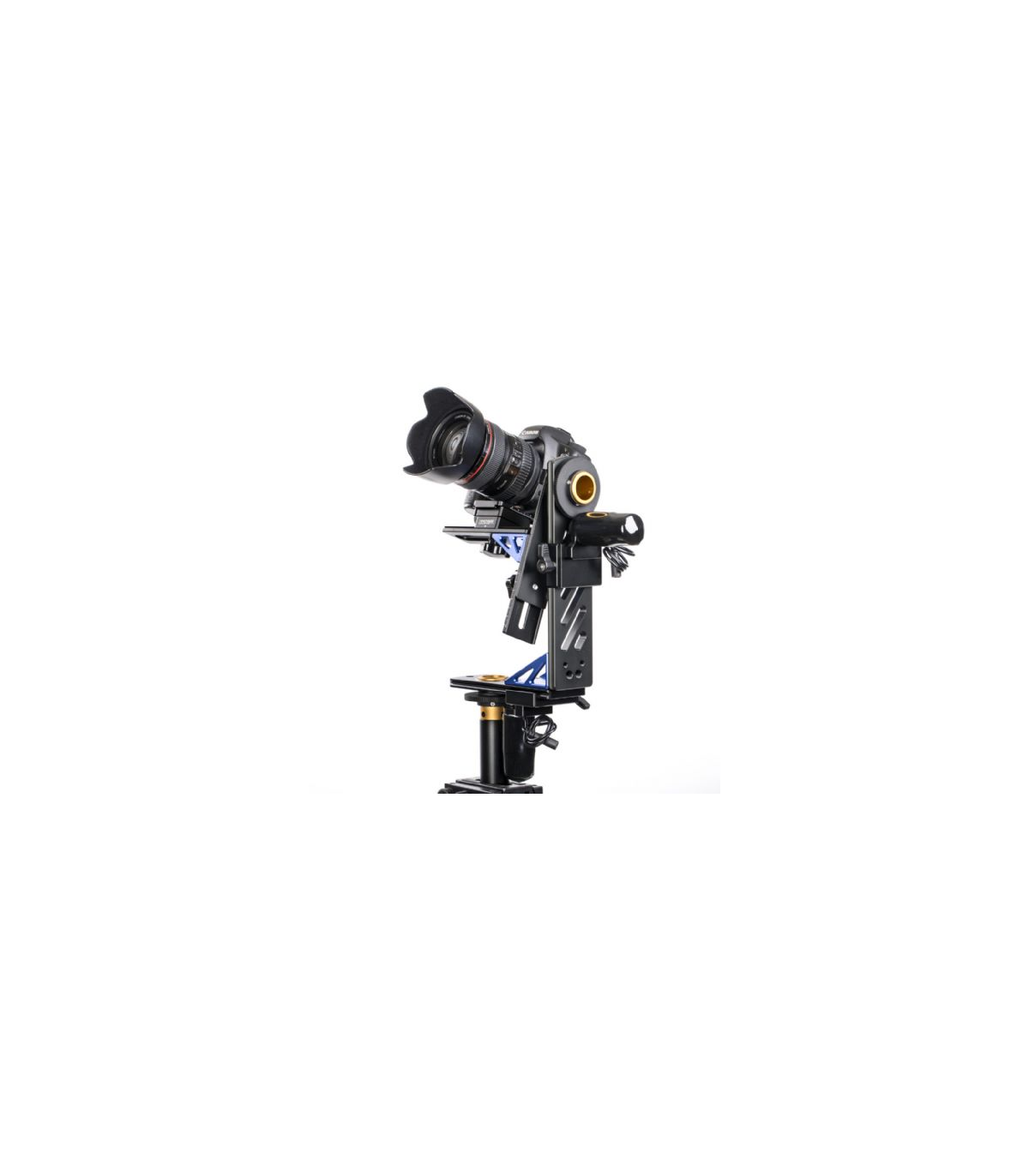

Sevenoak Panoramic Head SK-ECH04 with Motor is a 2 axis remote controlled Electronic ball head, designed for use on Jib Arms, Tripods or sliders (Female threaded bottom). It features adjustable positioning on 2 axies and provides smooth motion as a result of this design.

Usage Sevenoak Panoramic Head SK-ECH04

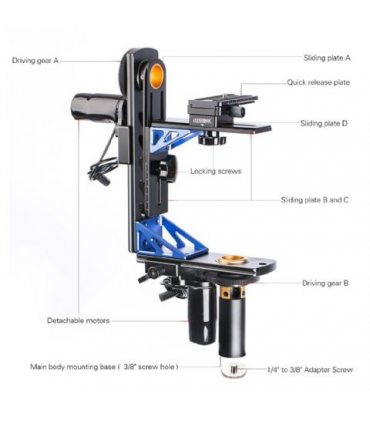

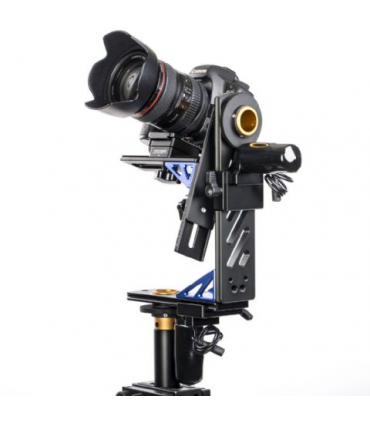

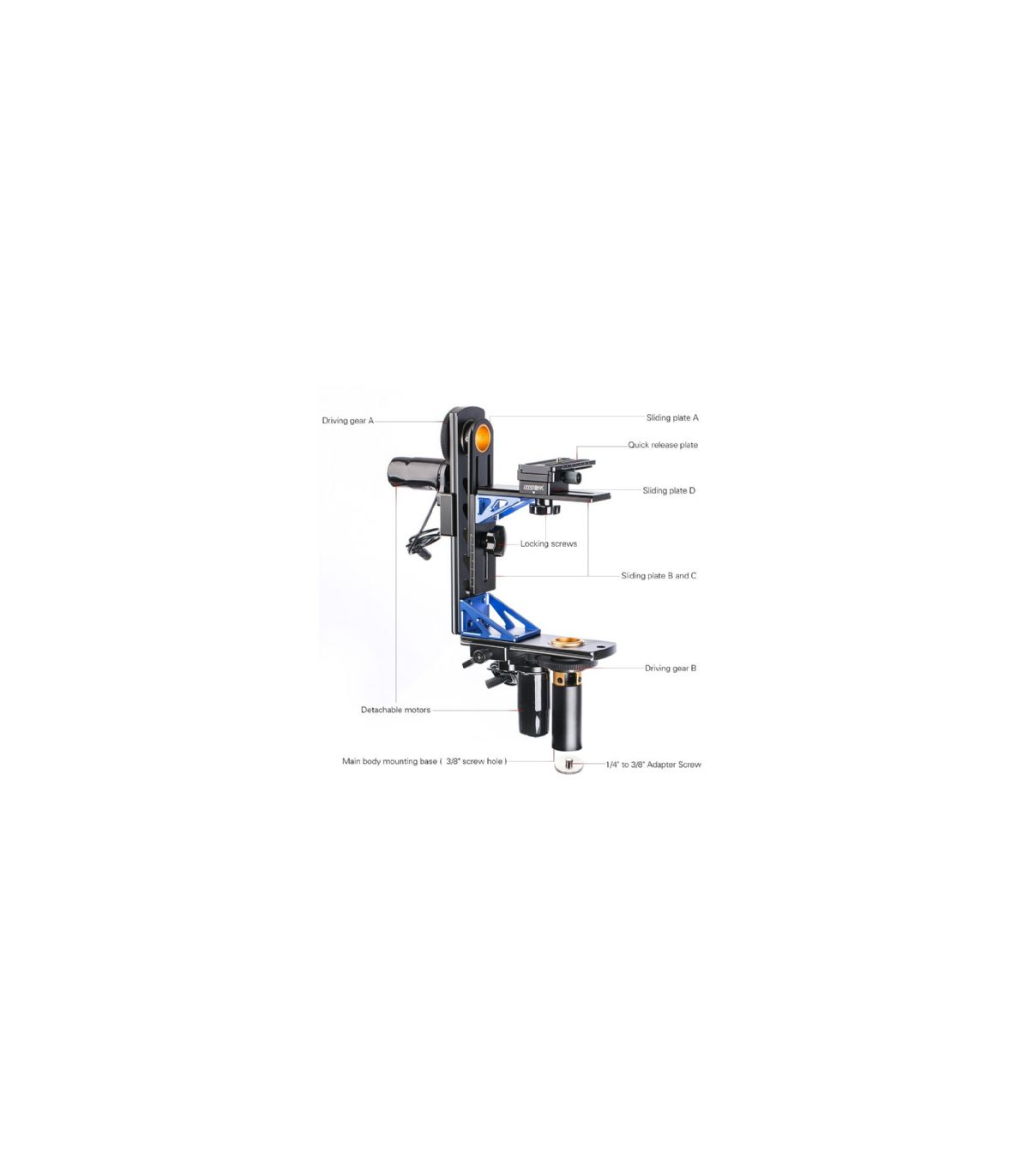

The controller that comes with the SK-ECH04 has a joystick that gives the head precision pan and tilt movement in either direction from a slow crawl up to the required speed. The joystick will also pan and tilt simultaneously. The head will pan and tilt through 360 degrees, this enables the camera to point directly upwards or downwards when required. It is driven by two custom-geared motors with belt drive. The motor drive can be easily disengaged to enable the camera to be balanced correctly on the camera plate. The head's camera plate is adjustable for different sizes of camera and will support up to 10 kg.

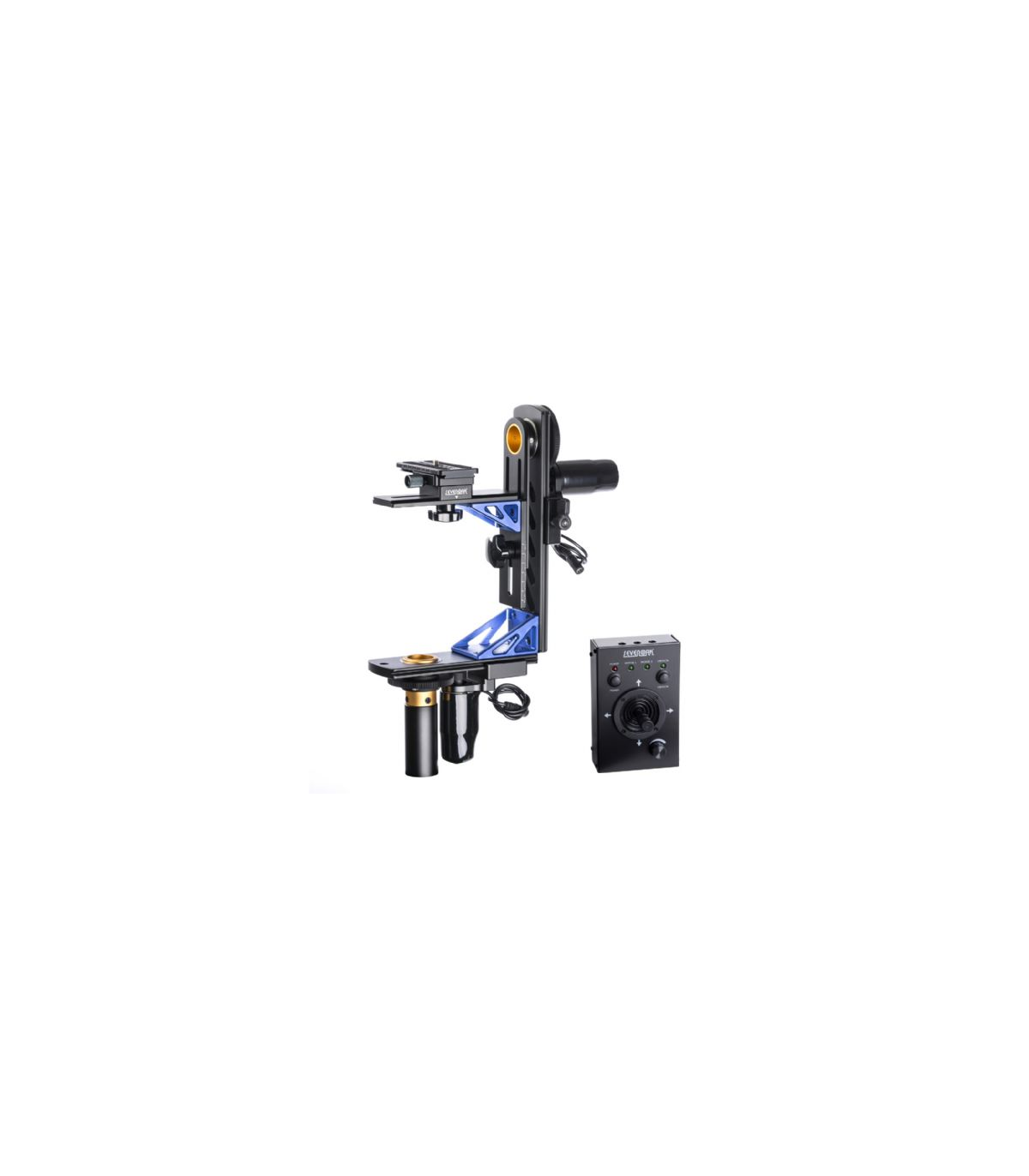

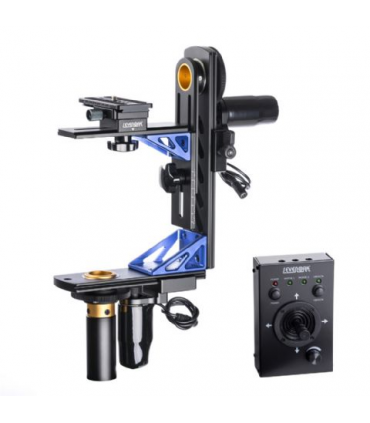

Joystick control box

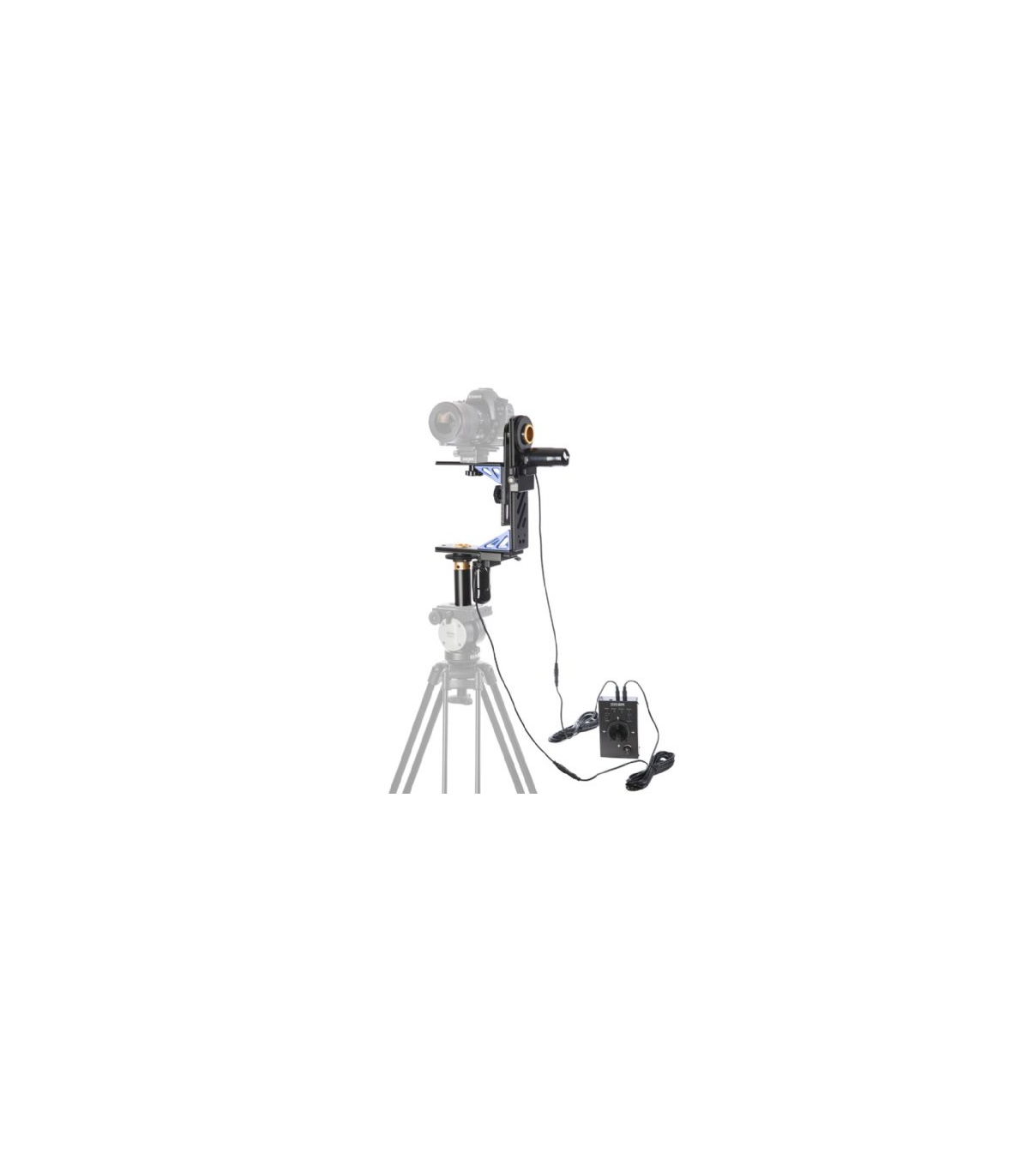

The joystick control gives the head precision pan and tilt movement in either direction from a slow crawl up to the required speed. The joystick will also pan and tilt simultaneously. On the side of the control box is a variable speed controller, so you can set the maximum speed for better control, there are also switches to change the direction of the joystick control and an on- and off switch. On the front of the control box are sockets for the control cables, 12V DC in and two motor sockets. The head is powered by the supplied AC adaptor. At the optional accessories you can find a accu pack and Battery Holder for the Sevenoak Panoramic Head SK-ECH04, in order to use it without the adapter. On the bottom of the control box is a mounting bracket to attach it to the Jibs and Cranes. The SK-ECH04 comes in a handy case.

Specifications

Fastest speed: 3.3 rpm/min
Slowest speed: 0.5 rpm/min
Control cable length: 6 meters

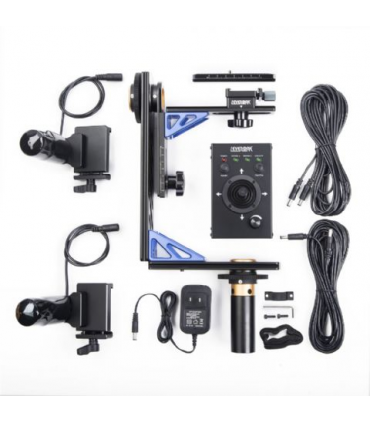

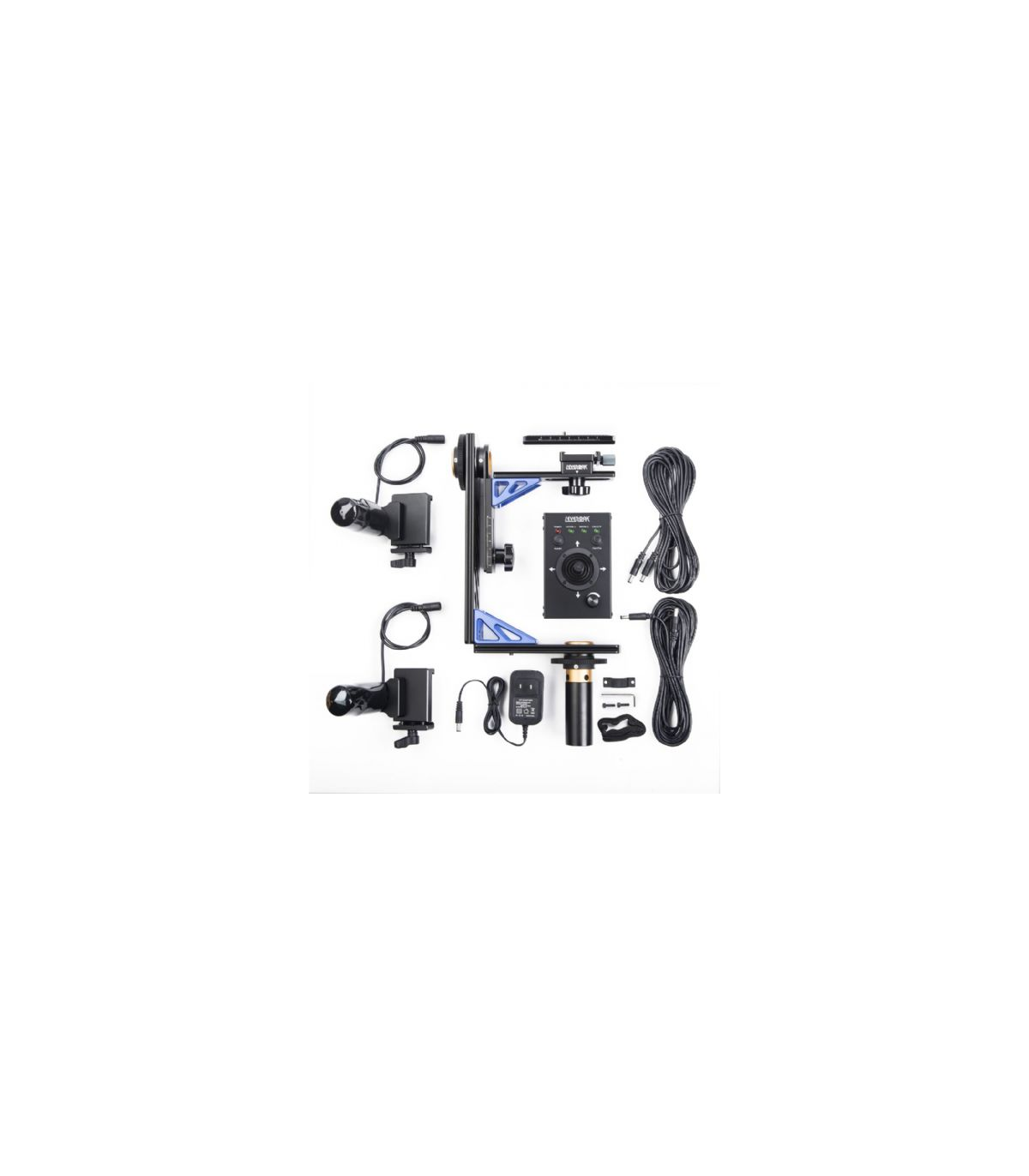

Included:

1x Sevenoak Panoramic Head SK-ECH04
1x Controller
2x Control motors
2x Control cable
1x AC-adapter
1x Mounting bracket



Detalii ale produsului
3500701

Fisa tehnica

Livrare
2-3 zile lucratoare
